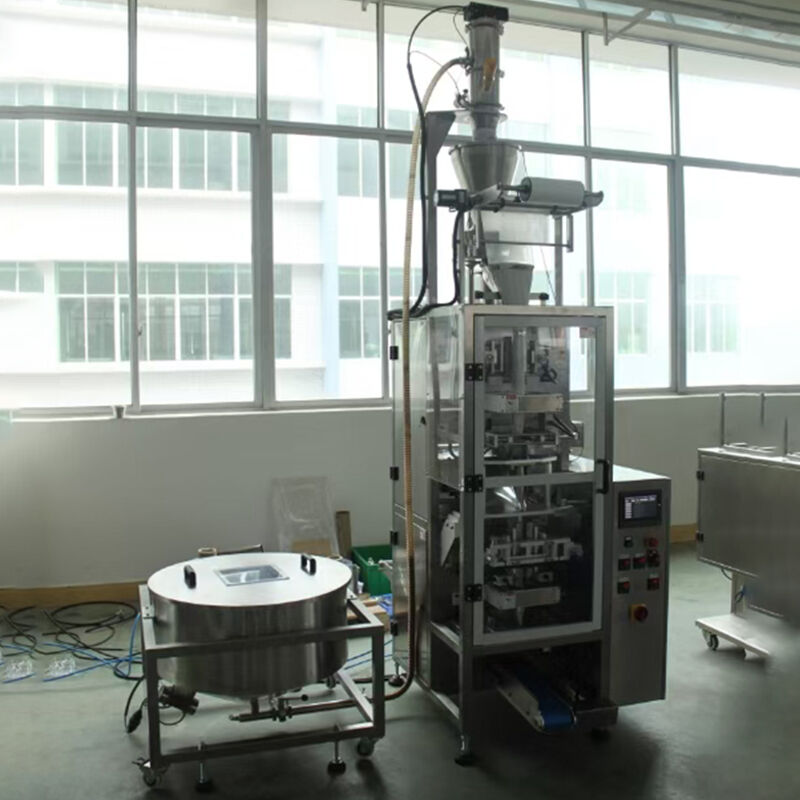

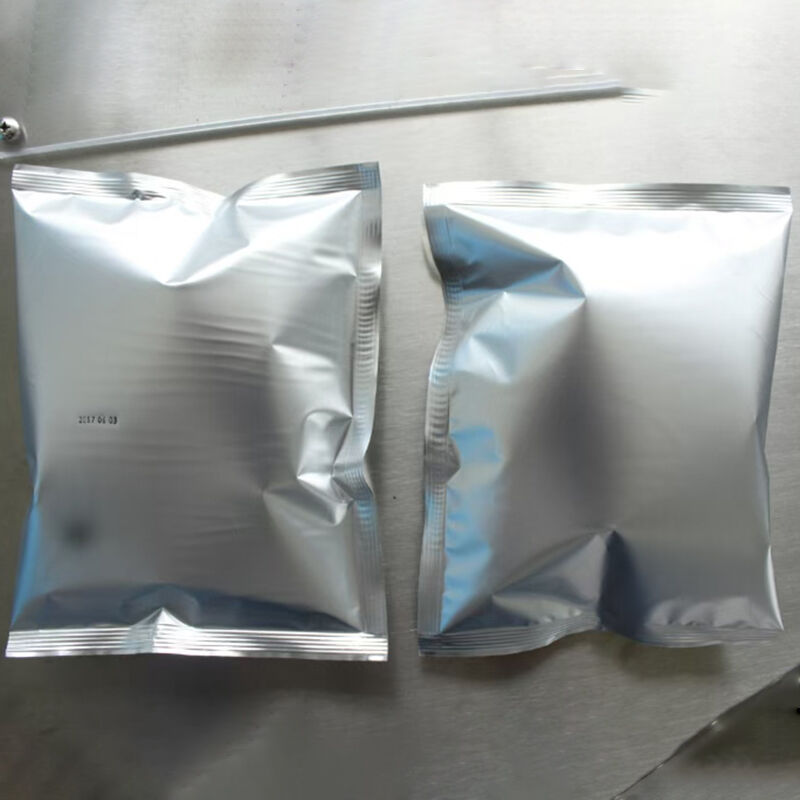

A high-efficiency, fully automated packaging machine ideal for coffee, tea, food, pharmaceutical, and chemical products. Made of premium 304 stainless steel and aluminum alloy, it complies with GMP, food safety, and CE standards. It accommodates 0.05–0.12mm films (laminated, aluminum, paper film) and produces bags at 25–50pcs/min. Equipped with PLC touch control, servo motor bag pulling, PID temperature control, and SICK color mark tracking, it automates metering, bag-making, sealing, date printing, and collection in one workflow. Key features include empty-bag prevention and modular frame design for easy operation and quick product changeovers.
1. Applicable packaging materials: Laminated film / laminated aluminum film / aluminum film / paper film, etc.
2. Material & craftsmanship: Made of high-quality 304 stainless steel and aluminum alloy.
3. Sealing type: Tooth-shaped cutting (sealing and cutting in one layer), stripe sealing.
4. Forming device design: Oval collar former, stable forming and easy to replace.
5. Frame structure: Modular frame, conducive to roll film forming; adjustable/movable as a whole, optional auto deviation correction device.
6. Automated process: Automatically completes product metering, bag-making, sealing, packaging, date printing, output and collection (all in one go).
7. Control system: PLC control, equipped with multi-language touch screen; displays production speed/batch, supports fault self-diagnosis, and can store 10 groups of parameters (faster product changeover).
8. Bag-pulling principle: Servo motor for bag pulling; adjust bag length directly via touch screen (no need to replace parts, precise and error-free).
9. Color mark tracking: Uses SICK color mark sensor; ensures complete logo patterns when packaging materials with color marks.
10. Temperature control: PID digital temperature control, independent heating for longitudinal/transverse sealing (temperature deviation ±1℃, more stable control).
11. Empty bag prevention: Inner bag material drop sensor detection design, avoids empty bag packaging.
12. Hygiene standard: Open mechanical structure + 304 stainless steel (material contact parts), ensuring no material contamination; easy to clean, meets pharmaceutical GMP and food safety certification requirements.
13. CE certification: Complies with CE safety standards.
14. Applicable industries: Automatic metering packaging for materials in food, medicine, chemical products; prevents oxidation, mildew, corruption and moisture after packaging, extending product shelf life.
| Bag-in-Bag Powder Packing Machine | |||
| Power | 3.5Kw | Voltage | 220V/50Hz/1PH |
| Bag-making length | 80mm-350mm | Bag-making width | 90-200mm |
| Sealing width | 8-15mm (specific width to be determined) | Bag-making length | 80mm-350mm |
| Film thickness | 0.05-0.12 mm | Filling accuracy | ±1-2% (based on material density) |
| Packaging speed | 25-50pcs/Min | ||

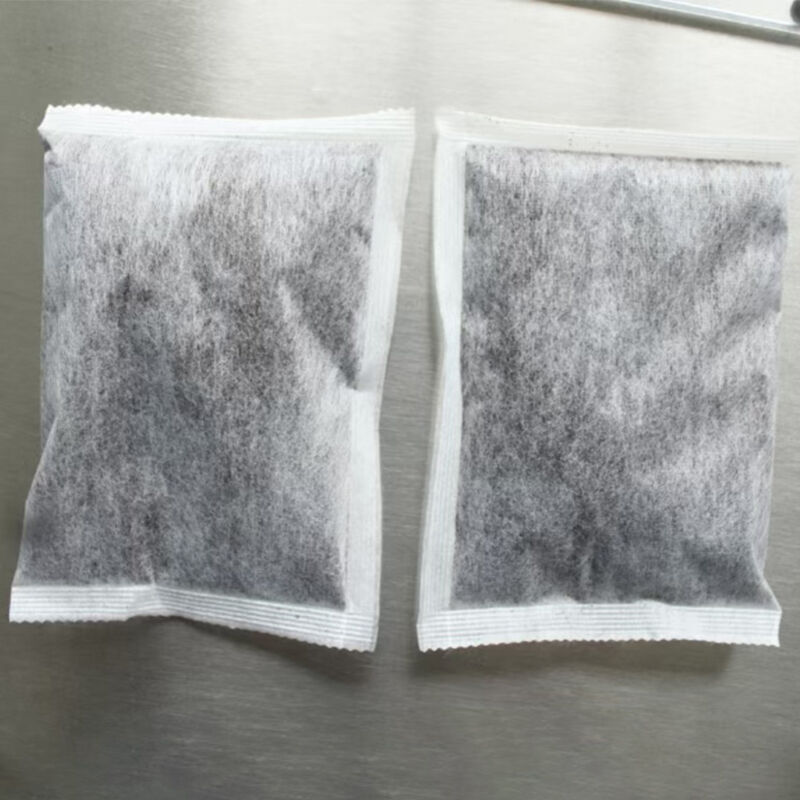

Core Component Name: Powder Filling and Packing Machine (Inner Bag)
| Powder Filling and Packing Machine (Inner Bag) | |||
| Power | 1.5Kw | Voltage | 220V/50-60Hz/1PH |
| Hopper Capacity | 26L | Packaging Speed | 10–45 bags/min (adjustable based on bag type and filling volume) |
| Filling Accuracy | ≤±1% | Packaging Weight | 10–500g (adjustable by replacing augers of corresponding sizes) |
| Measurement Method | Auger metering | ||
Hopper Design:
Semi-transparent 304 fully sealed damped pneumatic hopper, adopting a combined side-opening door structure with hydraulic lifting adjustment, effectively preventing dust leakage.
Filling System:
Equipped with Schneider servo motor-driven auger, featuring high metering accuracy. Filling speed and volume can be adjusted via touch screen, enabling convenient product changeover.
Material & Compliance:
The whole machine shell is made of 304 stainless steel, complying with GMP standards, suitable for food, pharmaceutical and other industries with high hygiene requirements.
Auxiliary Configuration:
The stirring system adopts a gear reduction motor with low noise and long service life; equipped with an automatic powder level sensor to realize automatic material replenishment.
Equipment Application
It is mainly suitable for quantitative packaging of powder materials (such as food additives, pharmaceutical powders, chemical powders, etc.). With the advantages of high accuracy, easy operation and hygiene compliance, it is widely used in automated packaging lines with high production efficiency requirements.
| Item | Product Name | Model | Number |
| 1 | Bag-in-Bag Power Packaging Machine | 1 unit | |
| 2 | Thermal Transfer Coding Machine | 1 unit | |
| 3 | Vacuum Feeding Machine | 1 unit | |
| 4 | Vacuum Cleaner & Components | 1 unit | |
| 5 | Static Elimination Device | 1 set | |
| 6 | Discharge Conveyor | 1 unit |
Q1: What is the production capacity of this machine?
A1: Outer bag packaging speed is 25-50 bags per minute, and inner bag packaging speed is 10-45 bags per minute. This can be adjusted according to material fluidity and filling volume to meet commercial production needs.
Q2: What types of materials can this machine package?
A2: It is designed for quantitative packaging of powder materials, including food additives, pharmaceutical powders, chemical powders, and tea powders, suitable for industries with high hygiene requirements.
Q3: Is the dosing range customizable?
A3: Yes. The standard dosing range is 10–500g per bag. Customized ranges are available by replacing augers of corresponding sizes, and the filling volume can be adjusted via the touch screen.
Q4: Which bag materials are compatible with the machine?
A4: It supports common packaging films for powder products (such as laminated film, aluminum film, and paper film) with a thickness of 0.05–0.12mm, ensuring tight sealing and product freshness.
Q5: What is the weighing accuracy of the machine?
A5: Equipped with a Schneider servo motor-driven auger and high-precision sensor, the filling accuracy is ≤±1%, ensuring consistent product weight (performance may vary slightly by material type).
Q6: How many operators are needed to operate the machine?
A6: It features labor-saving automatic operation, requiring only 1 operator to monitor the entire process (including material supplement and equipment inspection).
Q7: Does the machine meet hygiene and industry standards?
A7: Yes. The machine shell and material-contact parts are made of 304 stainless steel, complying with GMP standards and food safety requirements, avoiding material contamination.
Q8: How to solve common issues like material clogging or inaccurate dosing?
A8: For clogging, ensure material dryness and clean the hopper regularly; for inaccurate dosing, calibrate the sensor periodically and check if the auger is worn or loose.
