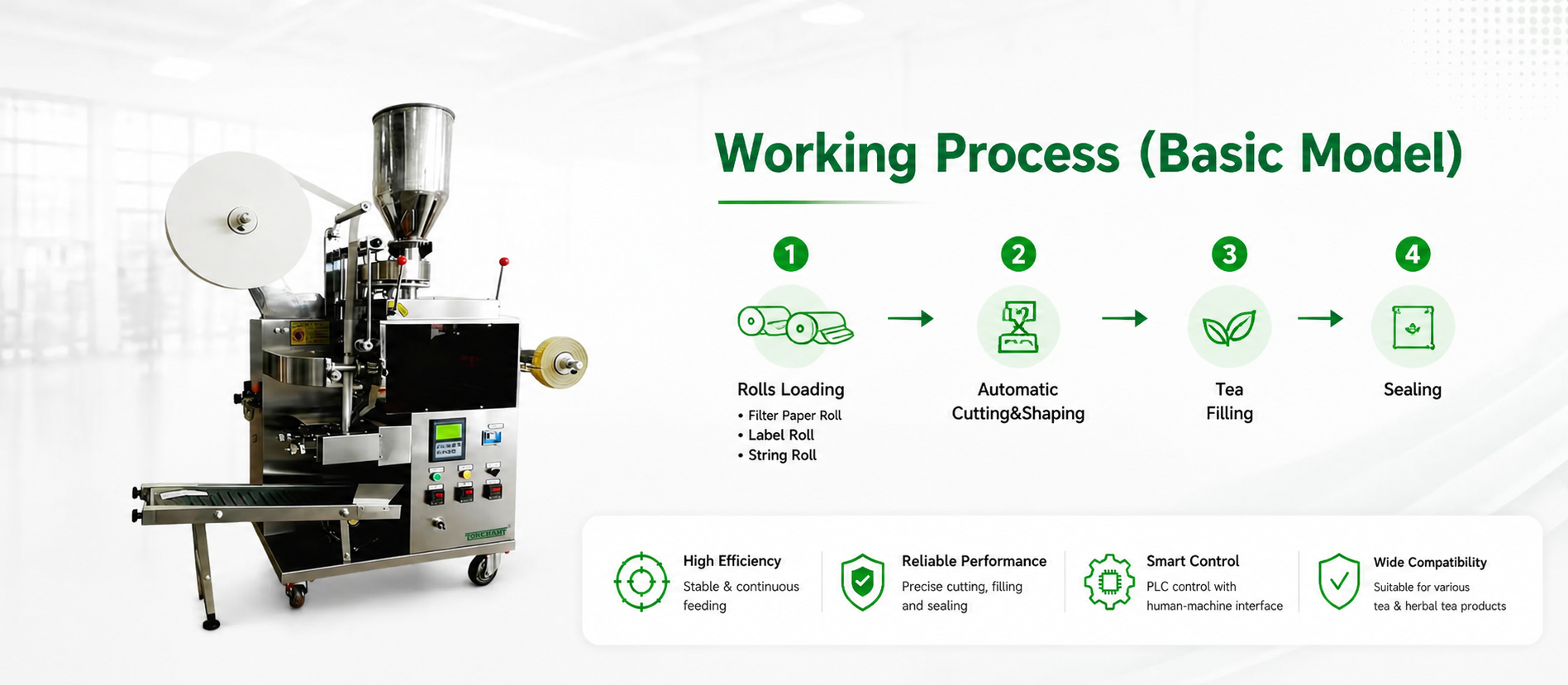

The machine can automatically complete bag-making, filling, measuring sealing, cutting, counting, thread and tag attaching. Pins need to be stapled manually. PLC control system and automatic temperature control system are adopted, which can effectively control the sealing temperature within the standard range.
Product Parameter
Measuring |
Volumetric cup filler |
Filling Range |
3-15ml |
Bag Size |
L:150mm (80+70 mm, bi-fold double chamber bag); W:40mm. |
Filter paper width |
87mm/94mm |
Tag Size |
L:20mm,W:25mm |
Thread Length |
155~200mm |
Packing speed |
20~40 bags/min |
Power |
220V/50HZ/1.6KW |
Weight |
350KG |
Dimension |
900*950*1800mm(L*W*H) |
Air supply |
≥0.6Mpa(Optional with air compressor) |
Product Advantage
Full-process Automation: Integrates bag forming, filling, weighing, sealing, and cutting in one machine for streamlined efficiency.
Wide Material Compatibility: Suitable for various filterable granules and powders like tea, coffee, and herbal blends.
Efficient Human-Machine Collaboration: Only requires manual stapling, achieving near-full automation with balanced cost and output.
Intelligent Temperature Control: PLC system with smart thermal regulation ensures precise and consistent sealing.
Universal Consumable Support: Compatible with standard filter paper, cotton thread, and labels for easy sourcing and replacement.
Compact & Reliable Design: Robust structure with easy maintenance, ideal for continuous small to medium-scale production.
