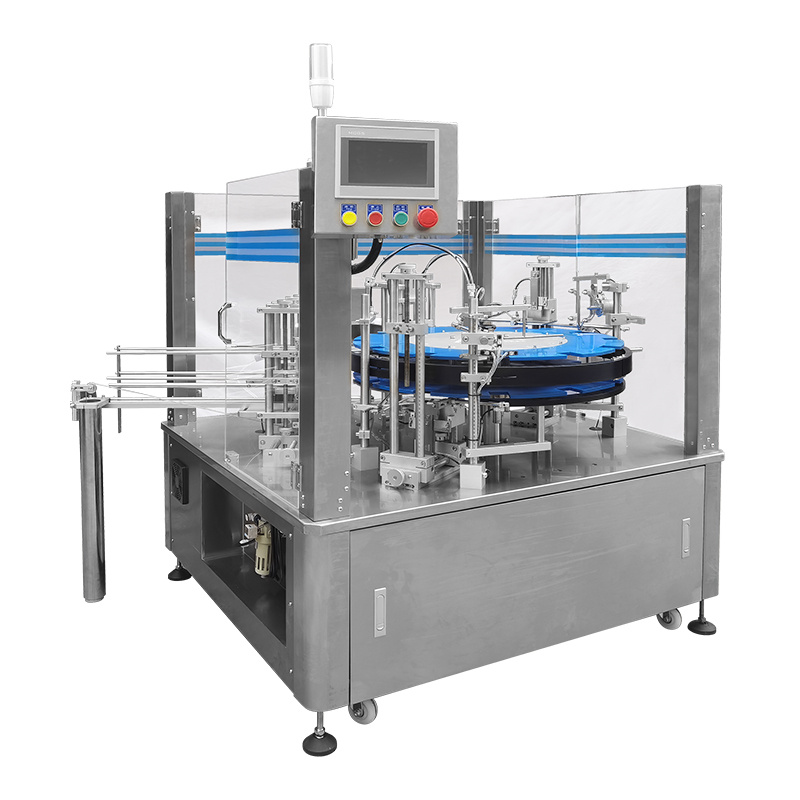

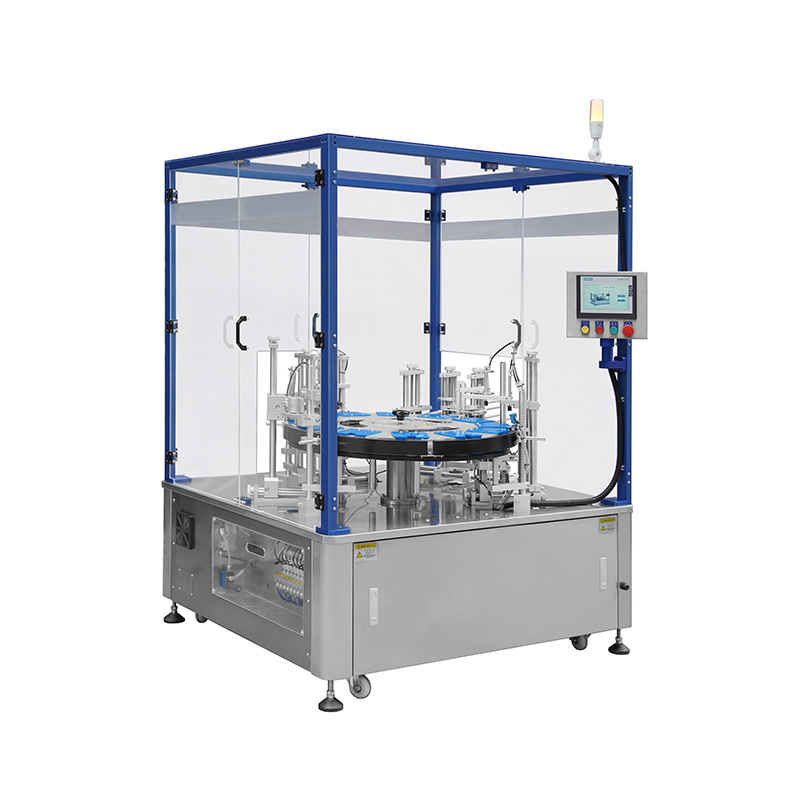

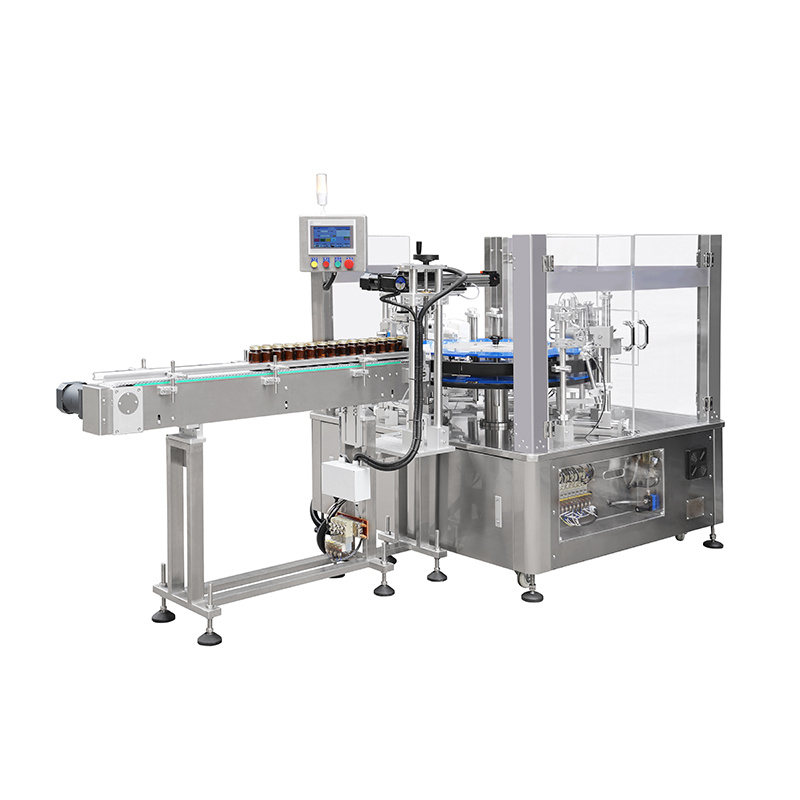

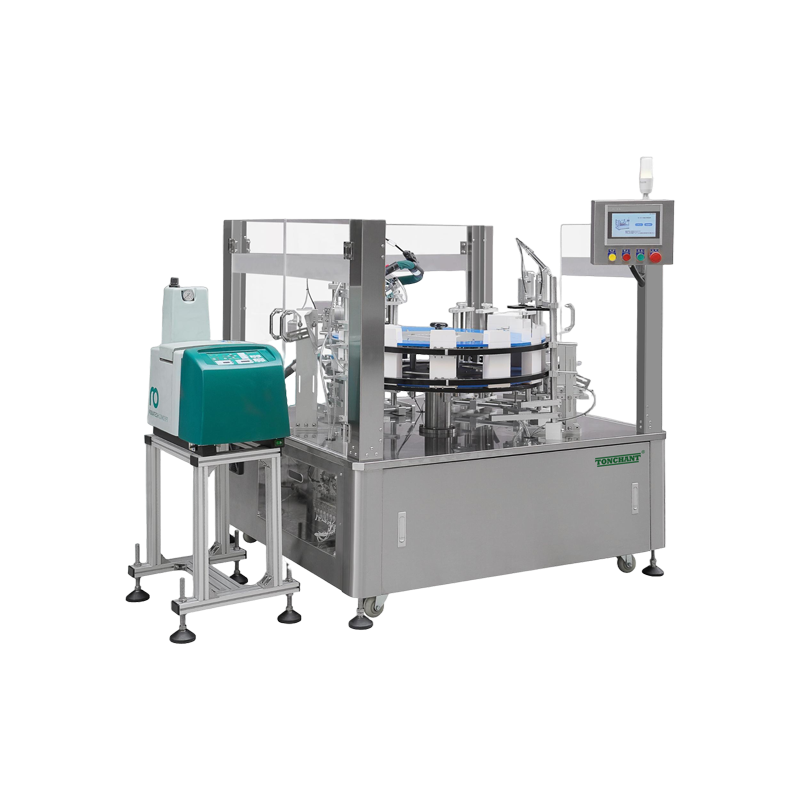

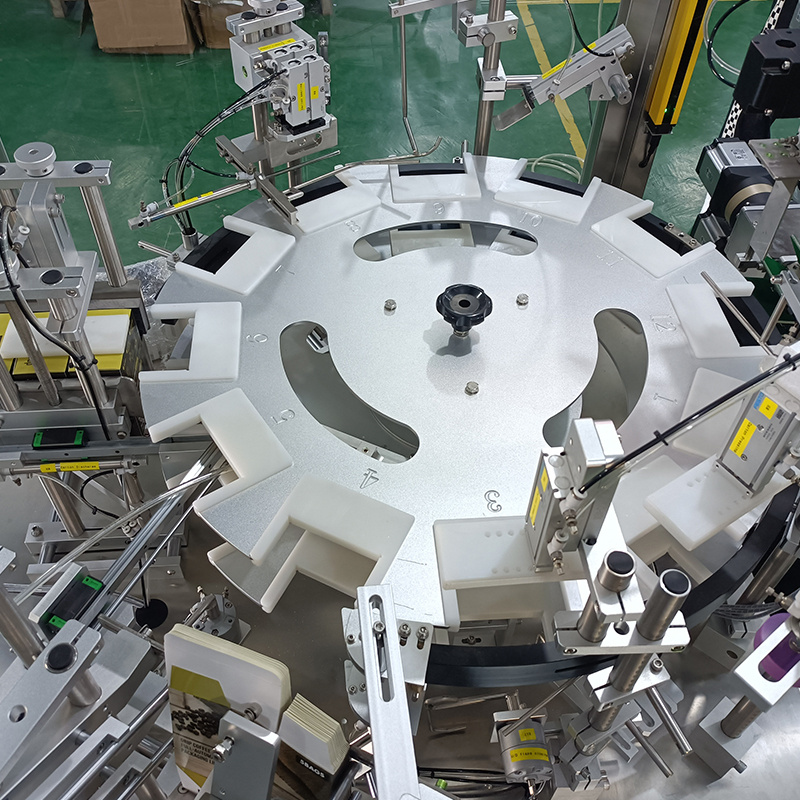

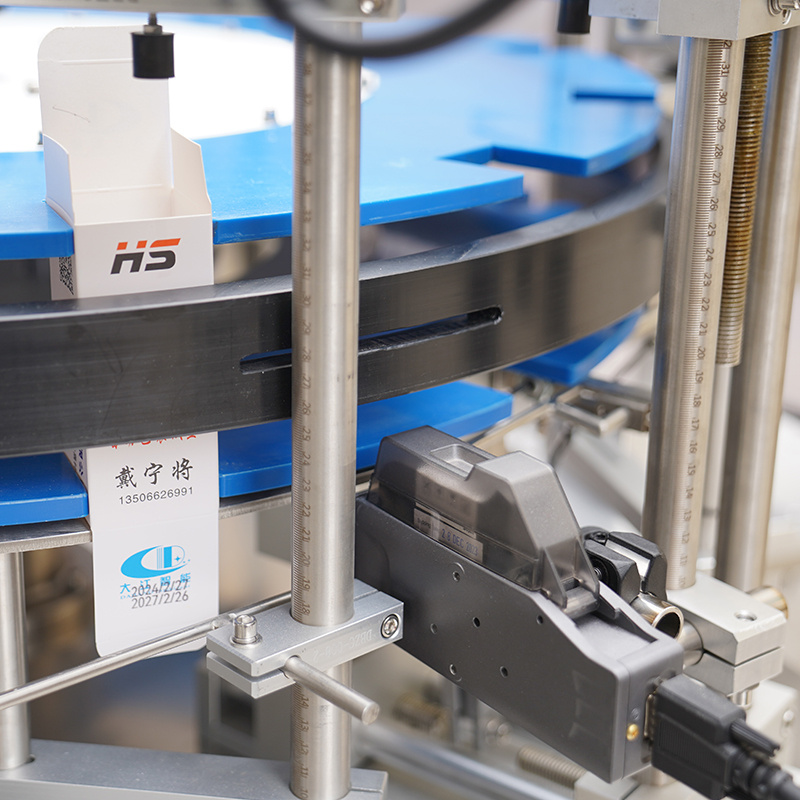

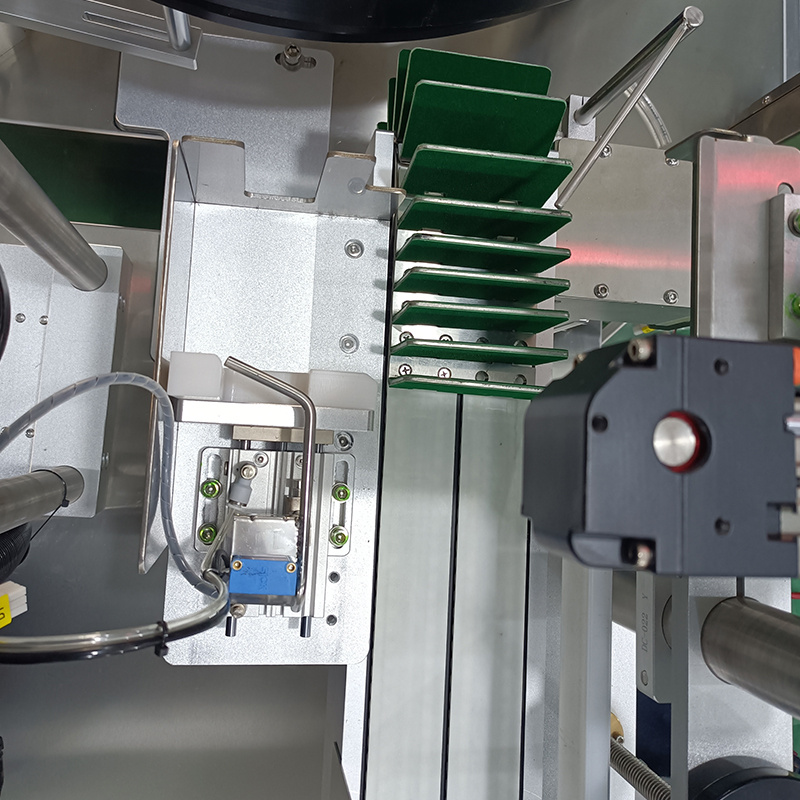

Improve packaging line efficiency with our Full Automatic Box Feeding Machine. Designed for high-speed carton feeding, labor cost reduction, and seamless integration with automated packaging systems.
Widely used in automatic carton feeding, box opening and box supplying in food, cosmetics, daily chemicals, electronics, hardware and other packaging lines.

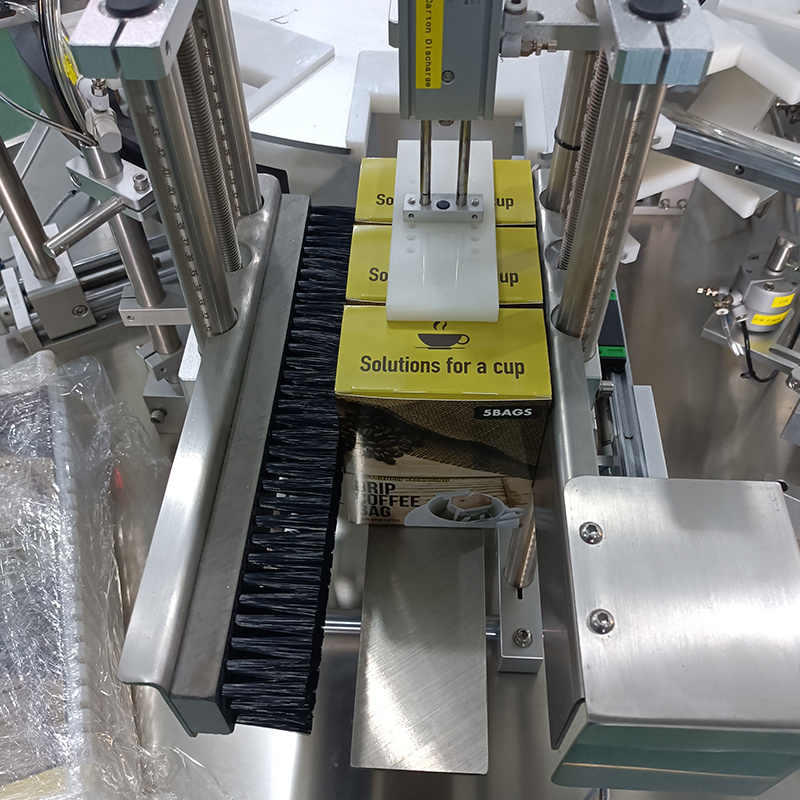

Coffee packaging production line
Tea packaging automation system
Food carton packaging line
Daily chemical product cartoning system
Pharmaceutical secondary packaging line

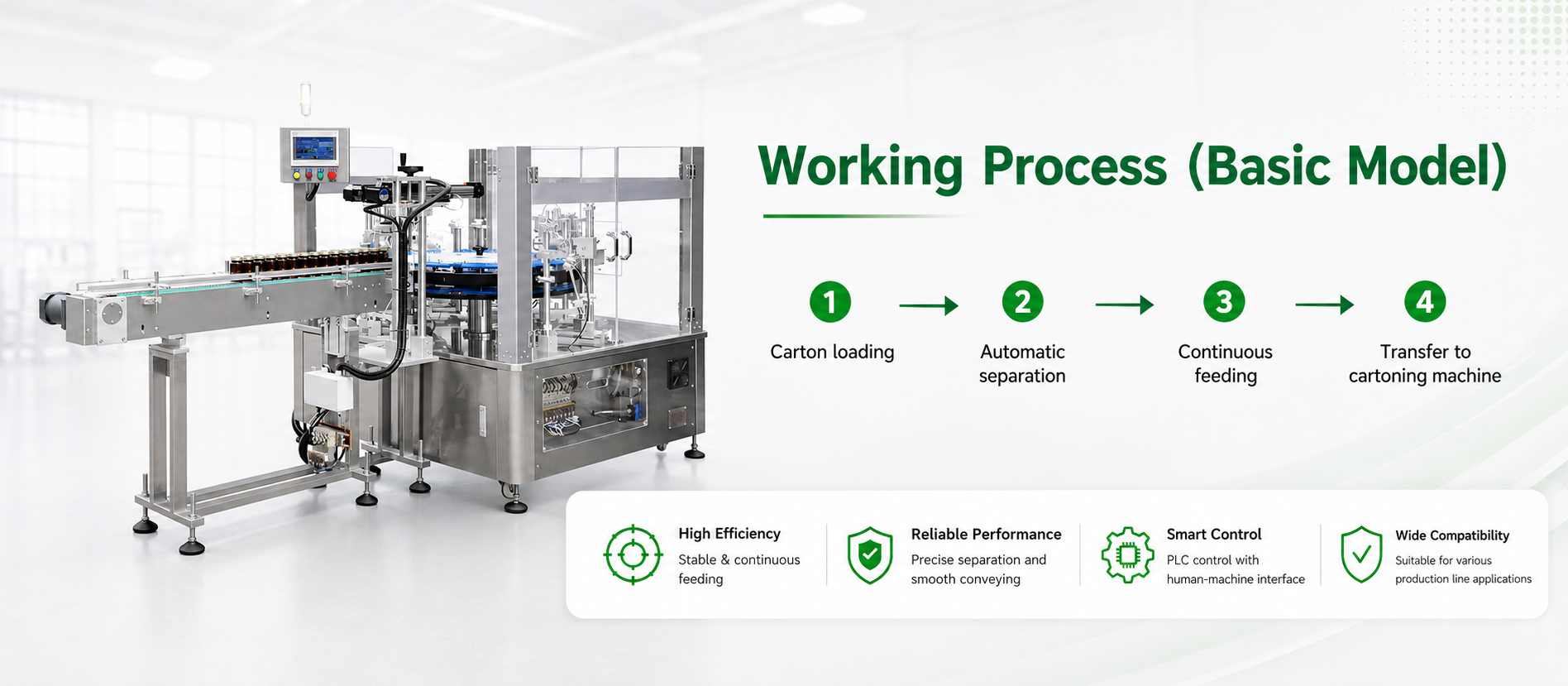

--Carton loading into magazine
--Automatic carton separation
--Carton opening (optional model)
--Precise positioning and alignment
--Continuous output to packaging line
| Model | TCH-BA20 | Power | 1.5 KW |
| Power Supply | Single-phase 220V 50/60Hz | Packaging Speed | 20-50 boxes per minute |
| Max. Carton Size | 230 × 120 × 120 mm | Min. Carton Size | 60 × 20 × 20 mm (Customizable) |
| Carton Paper Weight | 250-350 g/m² | Noise Level | ≤ 80 dB |
| Air Supply Pressure | 0.5-0.8 MPa | Air Consumption | 260 L/min |
| Overall Dimensions | L1100*W1500*H1700 mm | Machine Weight | 450 kg |
Fully automatic box feeding, stable and high-speed operation.
Wide size adaptability, suitable for multiple carton specifications.
Simple adjustment, quick change between different box sizes.

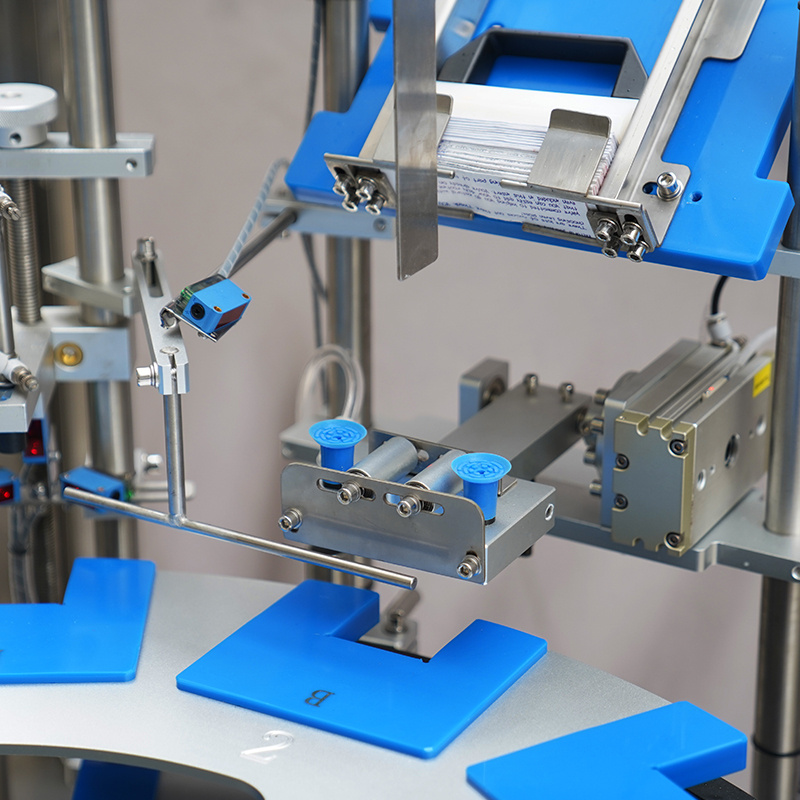

Stable box suction and feeding system, low failure rate.
Safe design, low noise, in line with workshop use standards.
Sturdy structure, long service life, easy maintenance.
Q: What is the box feeding speed?
A: 20-50 boxes per minute, depending on carton size and material.
Q: What is the suitable carton size range?
A: Max. 230×120×120 mm; Min. 60×20×20 mm (special sizes can be customized).
Q: What carton paper is suitable?
A: 250-350 g/m² carton paper is recommended for best feeding effect.
Q: Does this machine need air supply?
A: Yes, it needs air supply: pressure 0.5-0.8 MPa, air consumption 260 L/min.
Q: What is the power supply?
A: Standard single-phase 220V 50/60Hz, easy to connect.
Q: What about noise level?
A: ≤80 dB, suitable for normal workshop environment.
Q: Can it be used with packaging lines?
A: Yes, it is specially designed for automatic production line matching.
Q: How to adjust different box sizes?
A: Simple manual adjustment, no complicated tools needed, fast size change.
Q: What is the warranty period?
A: Standard 12-month warranty, lifelong technical support and spare parts supply.
Q: Can it be customized?
A: Support carton size, speed, interface and other customized requirements.
Professional automatic packaging machinery manufacturer
Stable performance, high efficiency, long service life
Suitable for automated production line upgrade
Easy operation and maintenance
Complete after-sales service and technical support
