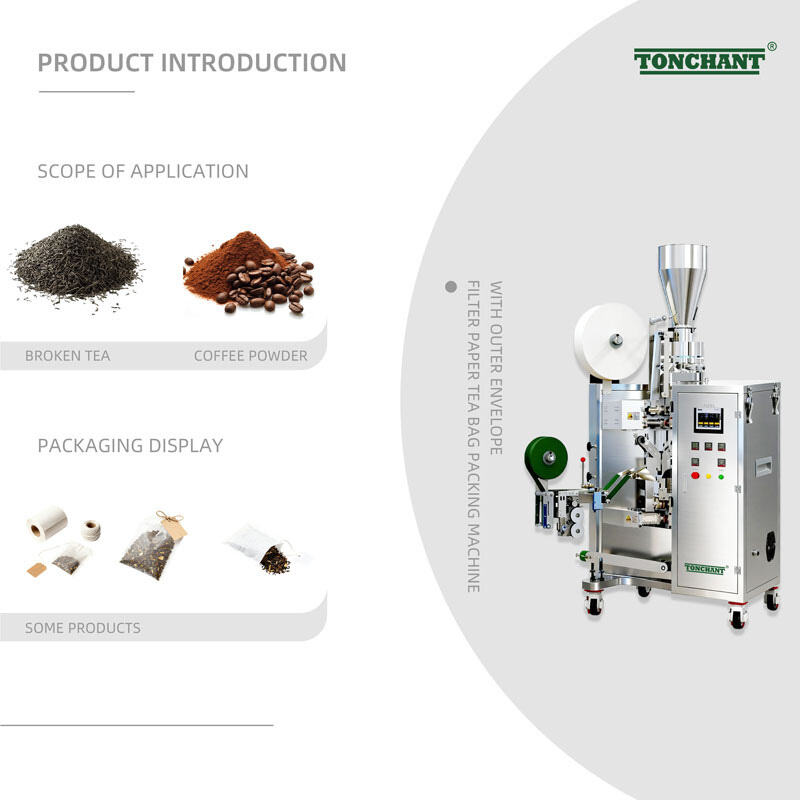

Suitable for powder products such as broken tea, matcha powder, coffee powder, etc. It can combine the filter paper roll, thread roll and label roll into a complete tea bag with a rope and label, It can also be combined with an outer bag roll. The tea bags can be directly placed inside the outer bag, thereby reducing labor costs.
1. The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
2. Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
3. The temperature controller is adjusted by PID to make the temperature control more accurate.
4. Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products
5. Packing material：filter paper, thread, composite membrane and labels.
| Place of Origin | China | Brand | Tonchant |
| Power | 4 KW | Voltage | 220V/50HZ |
| Weight | 450KG | Roll | 4 ROLLS |
| Sealing Type | Ultrasonic | Packaging Materials | Filter paper, Thread, Labels. |
| Dosing Range | 3-10g / bag | Production Speed | 30-60 bags/min |
| Inner bag size | L ：50 - 70 mm W ：45 - 80 mm | Outer bag size | L ：80-120 mm W ：75-95 mm |

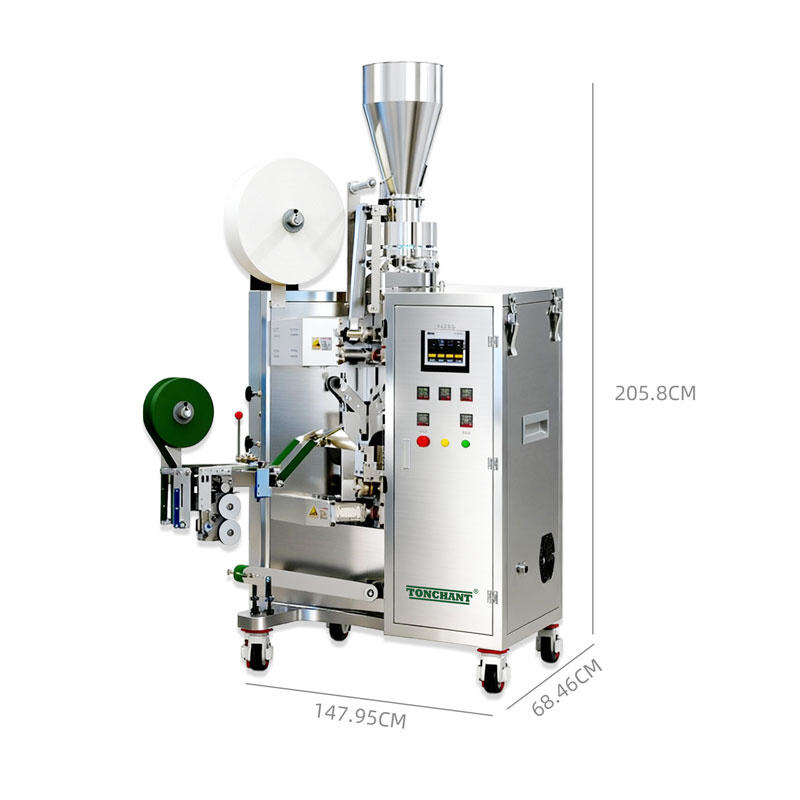

| Equipment Dimension | 1301*613*1700mm | Gas source | ≥0.4m³ /min |
Q1: What is the production capacity?
A1: With efficient ultrasonic sealing technology, it achieves speeds up to 3,000 bags per hour (approx. 30-60 bags/min), adjustable based on material characteristics to meet commercial needs.
Q2: How does nitrogen flushing benefit the product?
A2: The integrated nitrogen flushing system displaces oxygen during packaging, extending shelf life up to 18 months while preserving the coffee's original flavor and aroma.
Q3: Can the dosing range be adjusted?
A3: Standard automatic weighing system supports 3-10g range, with other specifications customizable. Parameters can be easily adjusted via touchscreen for different recipes.
Q4: How about operation and maintenance?
A4: Features PLC control system with intuitive touchscreen interface. No specialized technicians needed. Modular design ensures easy daily cleaning and maintenance.
Q5: How does the integrated packaging work?
A5: The machine combines inner bag packaging, outer bag packaging and nitrogen flushing in one process, completing drip bag forming, filling, sealing and outer packaging simultaneously. Outer bags feature easy-tear design for enhanced user experience.
