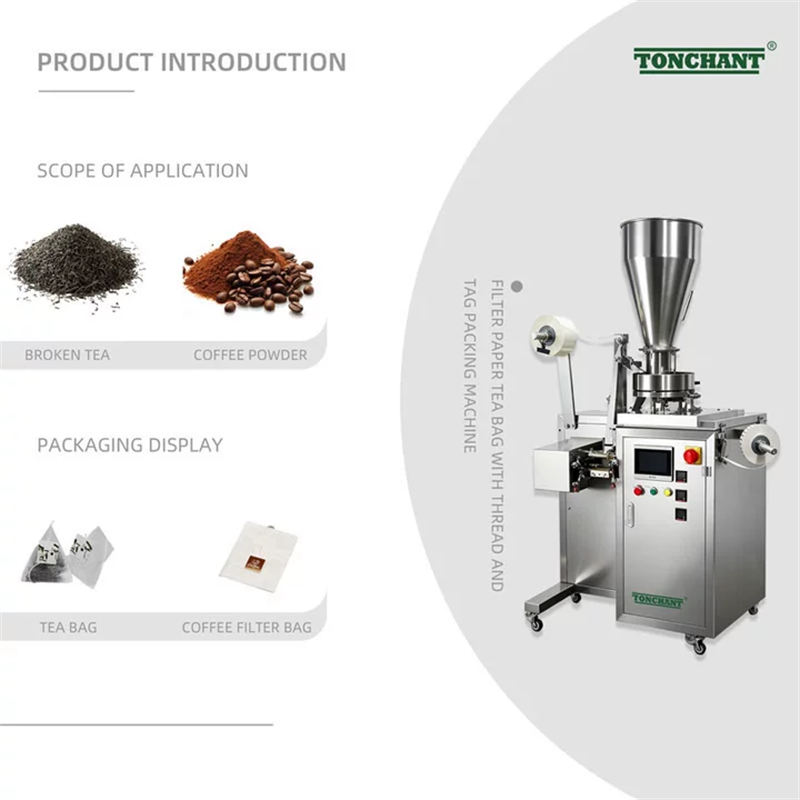

Suitable for powder products such as broken tea, matcha powder, coffee powder, etc. It can combine the filter paper roll, thread roll and label roll into a complete tea bag with a rope and label.
1. It's suitable for packing of steeping products automatically, such as: broken tea, medicinal tea, coffee and plant.
2. Tea bag with the thread and lable, all the work of bag making,measuring, filling, sealing,cutting and counting can be done automatically.
3. Packing material：filter paper, thread, labels.
4. High Production Capacity: Achieves speeds of up to 1,800 bags per hour (approx. 20-30 bags/min), adjustable based on the filling material to meet commercial production needs.
| Place of Origin | China | Brand | Tonchant |
| Power | 1.6 KW | Voltage | 220V/50HZ |
| Weight | 300KG | Roll | 3 ROLLS |
| Sealing Type | Ultrasonic | Packaging Materials | Filter paper, Thread, Labels. |
| Dosing Range | 1-10g / bag | Production Speed | 30-60 bags/min |
| Bag Length | 60 - 160 mm | Bag size | 45-80mm |

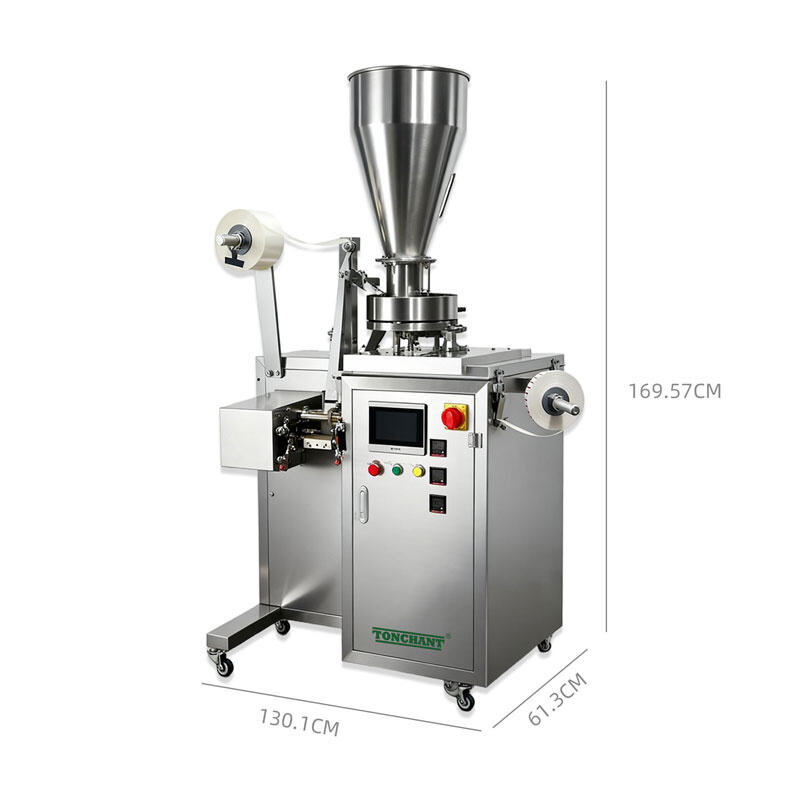

| Equipment Dimension | 1301*613*1700mm | Label size | 25*25mm or 20*20mm |
Q1: What products can this machine produce?
A1: Specifically designed to produce filter paper tea bags with thread and tag, automatically completing forming, dosing, thread attaching and labeling in one process.
Q2: What materials is it suitable for?
A2: Ideal for various powdered materials including broken tea, matcha powder, coffee powder, with adjustable filling range of 1-10 grams.
Q3: What raw materials are required?
A3: Requires three basic materials: filter paper roll, thread roll and label roll, which the machine automatically combines during production.
Q4: What is the production speed?
A4: Standard models achieve 30-60 bags/minute, ensuring high efficiency for mass production.
Q5: How about operation difficulty?
A5: Features PLC control system with user-friendly touchscreen, easy to operate after brief training.
