Efficient Ultrasonic Sealing & Cutting: Employs ultrasonic technology for precise sealing and cutting, producing perfectly formed drip coffee bags with strong seals and a clean appearance.
High Production Capacity: Achieves speeds of up to 1,800 bags per hour (approx. 20-30 bags/min), adjustable based on the filling material to meet commercial production needs.
Flexible Dosing System: Features an automatic weighing system for easy adjustment of fill weights between 10-20 grams (other specifications customizable), accommodating various recipes and blends.
Intelligent & Stable Control: Equipped with a PLC controller and a user-friendly touchscreen interface, ensuring reliable performance and straightforward operation without the need for specialized technicians.
Comprehensive Functionality: Integrates inner bag packaging, outer bag packaging, and nitrogen flushing into one process. Achieves individual fresh packaging for single-serve convenience, with an easy-tear outer bag design that enhances user experience.

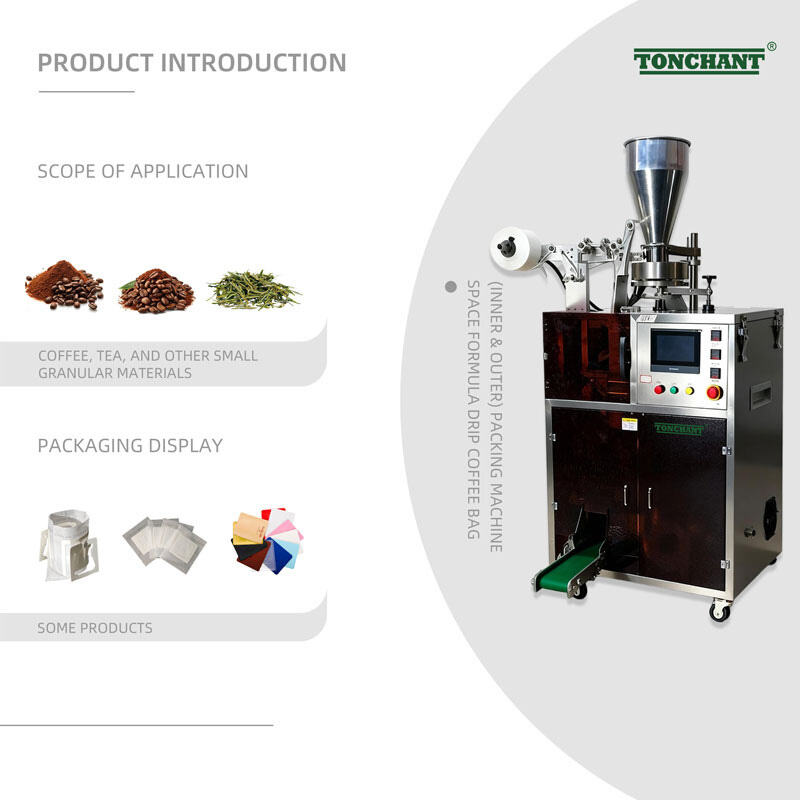

The machine is suitable for ground coffee and small particulate material.
Adopt the special drip filter bag with three-sides sealing,which can be directly hung against the cup edge to have a better brewing effect,moreover,the neat bag shape is a high fashion in the overseas markets.
The machine integrates automatic function, such as bag making, measuring, filling,sealing cutting, counting, batch number printing and other functions.
The drip inner bag made of non-woven fabric,guarantees convenient and hygienic brewing.The sealing adopts the advanced ultrasonic sealing,perfect sealing and beautiful bag type.
Packing material：composite membrane,nylon,corn fiber(Food grade)，drip coffee filter bag.
| Place of Origin | China | Brand | Tonchant |
| Power | 3.7KW | Voltage | 220V/50HZ |
| Weight | 310KG | Roll | 2 Roll |
| Sealing Type | Ultrasonic | Packaging Materials | Non-woven fabric and other ultrasonic sealing materials |
| Dosing Range | 10-20g / bag (Customizable) | Production Speed | 20-30 bags/min |
| Inner Bag Width | 180mm | Outer Bag Width | 200mm |

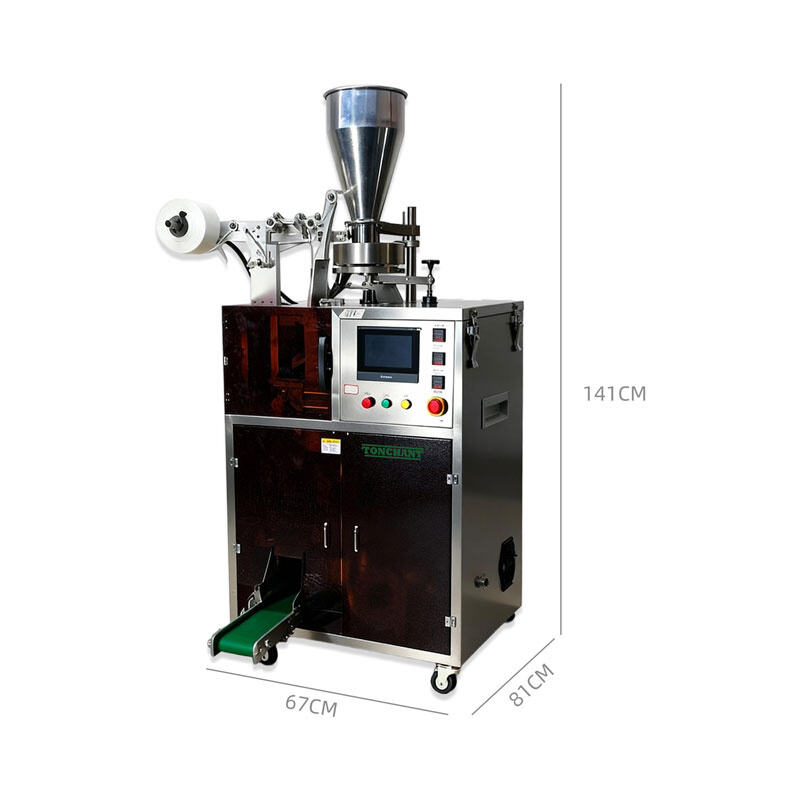

| Equipment Dimension | 670*810*1410mm | Gas source | ≥0.6m³ /min |
Q1: What is the production capacity?
A1: With efficient ultrasonic sealing technology, it achieves speeds up to 1,800 bags per hour (approx. 20-30 bags/min), adjustable based on material characteristics to meet commercial needs.
Q2: How does nitrogen flushing benefit the product?
A2: The integrated nitrogen flushing system displaces oxygen during packaging, extending shelf life up to 18 months while preserving the coffee's original flavor and aroma.
Q3: Can the dosing range be adjusted?
A3: Standard automatic weighing system supports 10-20g range, with other specifications customizable. Parameters can be easily adjusted via touchscreen for different recipes.
Q4: How about operation and maintenance?
A4: Features PLC control system with intuitive touchscreen interface. No specialized technicians needed. Modular design ensures easy daily cleaning and maintenance.
Q5: How does the integrated packaging work?
A5: The machine combines inner bag packaging, outer bag packaging and nitrogen flushing in one process, completing drip bag forming, filling, sealing and outer packaging simultaneously. Outer bags feature easy-tear design for enhanced user experience.
