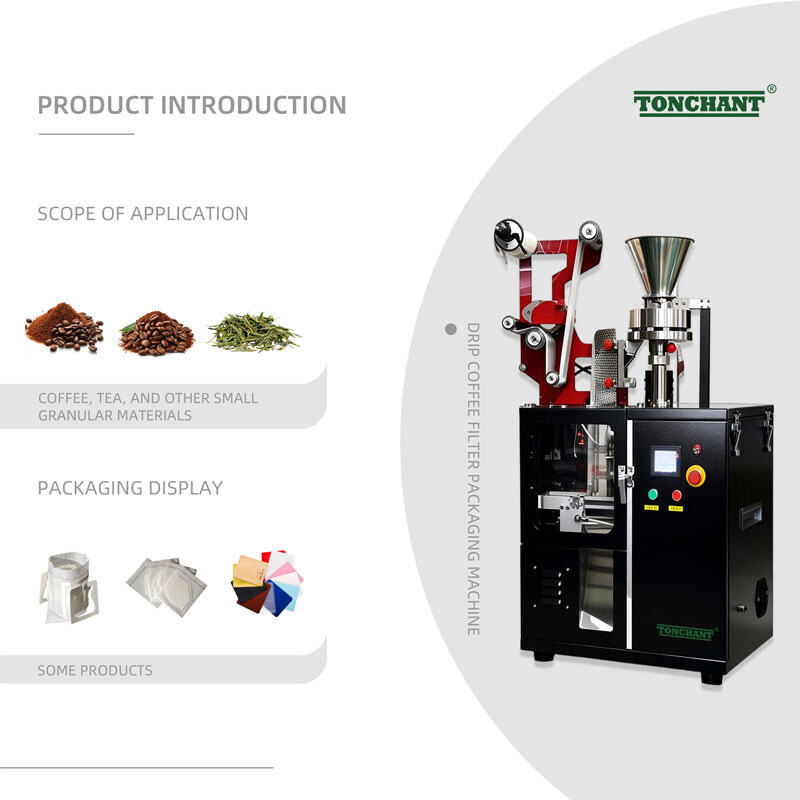

Fully automatic ultrasonic drip coffee bag packaging machine. Easy operation. Ideal for coffee, tea, Chinese medicine tea, health care tea and other small particle materials.
This high-performance drip coffee bag packaging machine is designed for users who prioritize efficiency and quality. Utilizing advanced ultrasonic sealing and cutting technology, it operates without compressed air—just plug in and start. It's the ideal solution for specialty coffee roasters, cafes, farms, and small-batch custom production.
Efficient Ultrasonic Sealing & Cutting: Employs ultrasonic technology for precise sealing and cutting, producing perfectly formed drip coffee bags with strong seals and a clean appearance.
High Production Capacity: Achieves speeds of up to 1,800 bags per hour (approx. 25-30 bags/min), adjustable based on the filling material to meet commercial production needs.
Flexible Dosing System: Features an automatic weighing system for easy adjustment of fill weights between 8-12 grams (other specifications customizable), accommodating various recipes and blends.
Intelligent & Stable Control: Equipped with a PLC controller and a user-friendly touchscreen interface, ensuring reliable performance and straightforward operation without the need for specialized technicians.
Energy-Efficient & Pneumatic-Free: The entire machine runs on electricity alone (approx. 0.8 Kw power consumption), eliminating the need for an air compressor, which reduces complexity and operating costs.
| Place of Origin | China | Brand Name | Tonchant |
| Power | 800W | Voltage | 220V/50HZ |
| Weight | 100KG | Roll Weight | 1 roll |
| Sealing Type | Ultrasonic | Packaging Materials | Non-woven fabric and other ultrasonic sealing materials |
| Dosing Range | 8-12g / bag (Customizable) | Production Speed | 25-30 bags/min |
| Film Wide | 180mm | Max. Unwinding Diameter | ≤Φ400mm |

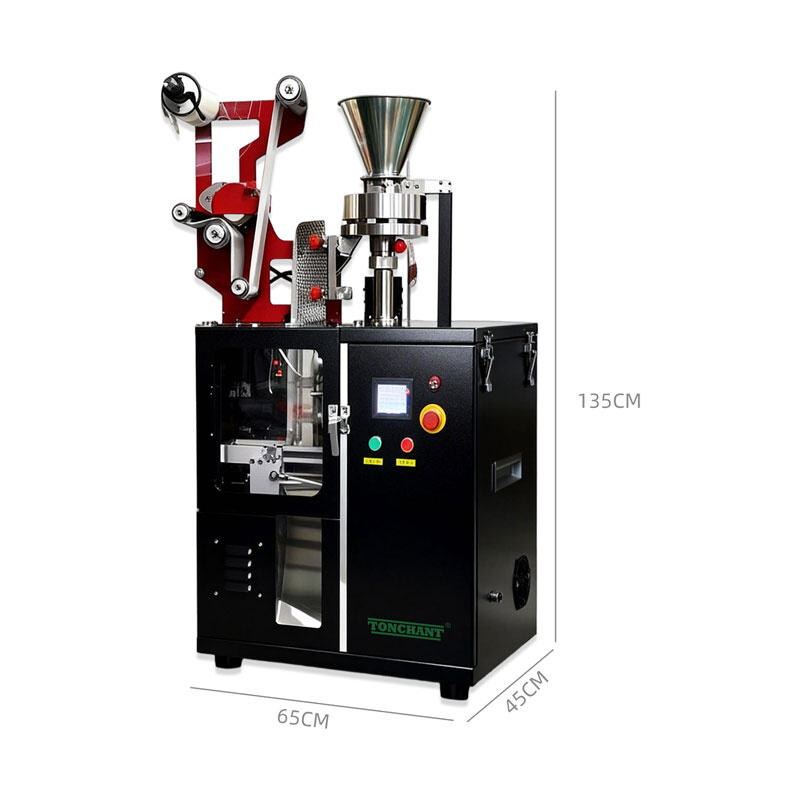

| Equipment Dimension | 650*450*1350mm | Core Inner Diameter | Φ76mm |
Q1: Does this machine require an air compressor?
A1: No, it doesn't. Utilizing advanced ultrasonic sealing and cutting technology, it operates entirely without compressed air - just plug in and start production.
Q2: How difficult is the operation?
A2: Features simple and intuitive design with user-friendly interface. No specialized technical staff required - regular operators can master it quickly with basic training.
Q3: What materials is it suitable for?
A3: Perfect for coffee beans/powder, tea leaves, herbal tea, health tea and other small granular materials. Ideal for specialty coffee roasters, cafes and small-batch custom production.
Q4: What are the advantages of ultrasonic sealing?
A4: Provides strong, clean seals without thermal stress, better preserving product flavor. Also offers lower energy consumption and simpler maintenance.
Q5: How about cleaning and maintenance?
A5: Modular design allows quick disassembly of key components. Food-grade stainless steel contact surfaces make daily cleaning and maintenance straightforward.
