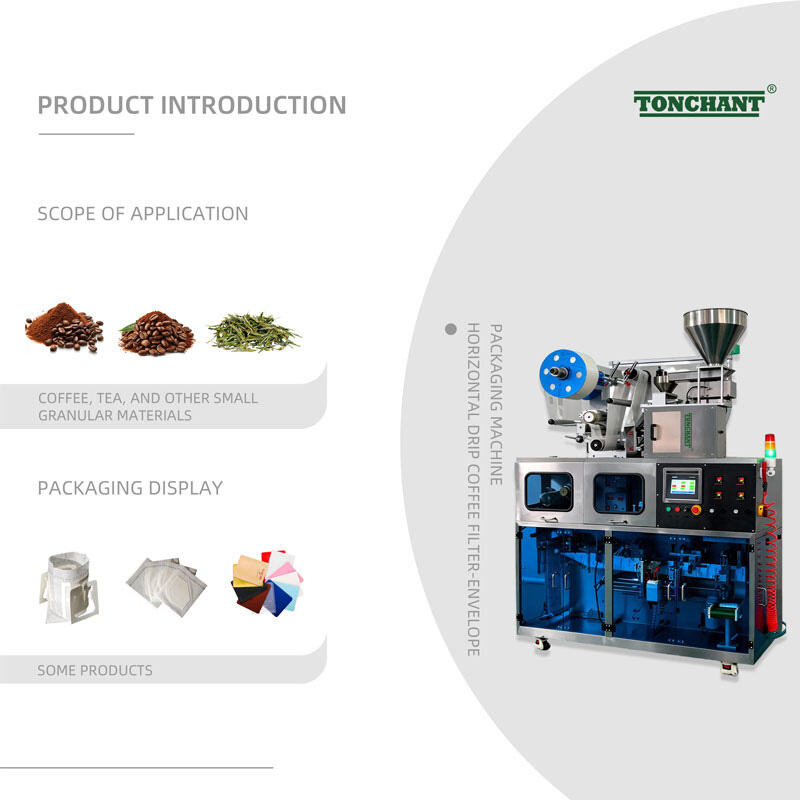

This fully automatic horizontal drip coffee inner filter and outer bag packaging machine is designed for efficient and aesthetically pleasing coffee sachet packaging. It uses ultrasonic sealing and cutting technology to create well-defined, attractive inner bags, while the outer bag features easy-tear perforations and a heat-sealed design for both elegance and convenience. With a packaging capacity of 2100–3000 bags/hour, it supports individual nitrogen-flushed packaging for single-serve coffee bags.
The machine integrates mechatronic design, equipped with a PLC control system and touchscreen interface for stable performance and user-friendly operation. The automatic weighing system ensures accurate dosing with a wide adjustment range, and product changeovers can be made without stopping the machine. Key pneumatic and electrical components from SMC and Schneider enhance long-term reliability. Suitable for inner non-woven fabric and outer heat-sealable composite films, it meets diverse packaging needs for drip coffee products.
High Efficiency & Output: With a maximum speed of up to 3,000 bags/hour, it significantly surpasses the industry average, dramatically boosting production efficiency.
Stability & Reliability: Utilizes internationally renowned brands (SMC/Schneider Electric) for core pneumatic and electrical components, integrated with PLC and touchscreen control to ensure long-term, stable operation.
User-Friendly Operation: Features an intuitive human-machine interface for clear parameter setting. Requires only one operator, reducing labor costs.
Flexibility & Convenience: Mechatronic design allows for product changeovers without shutdown, greatly reducing adjustment time and enhancing production flexibility.
Precision & Aesthetics: Ultrasonic sealing creates a neat and aesthetically pleasing inner bag. The automatic dosing system ensures accurate weighing with a wide adjustment range, guaranteeing product consistency.
Comprehensive Functionality: Integrates inner bag packaging, outer bag packaging, and nitrogen flushing into one process. Achieves individual fresh packaging for single-serve convenience, with an easy-tear outer bag design that enhances user experience.
| Place of Origin | China | Brand | Tonchant |
| Power | 3.5kw | Voltage | 220V |

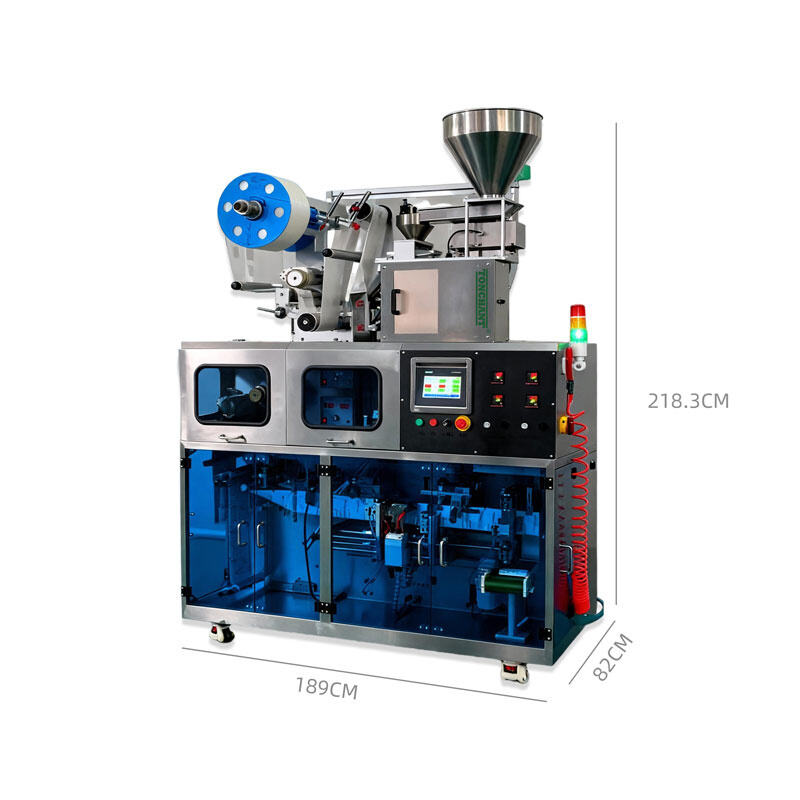

| Weight | 1200KG | Equipment Dimension | L 1890×W 820×H 2183mm |
| Roll Weight | 2 Rolls | Operators | 1 Person |
| Max. Unwinding Diameter | ≤Φ400mm | Core Inner Diameter | Φ76mm |
| Packaging Materials | Inner Filter: Non-woven fabric and other ultrasonic sealing materials Outer Bag: Heat-sealable composite film | ||
| Sealing Type | Ultrasonic | Dosing Range | 10g / bag (Customizable) |
| Bag Size | Inner Filter：74*90mm(180mm) Outer Bag： 120/125*100mm (200mm) | Production Speed | 35-50 bags/min |
| Air Pressure | ≥0.6Mpa(The supply of gas is guaranteed by the customer.) | ||
Q1: Can this machine package both the inner drip coffee bag and the outer bag simultaneously?
A1: Yes, this is an integrated packaging solution specifically for drip coffee products. It completes the entire process in one line: filling and sealing the inner coffee powder bag, forming the drip coffee bag, and then packaging it into the outer bag with final sealing.
Q2: What is the production efficiency?
A2: The output depends on the configuration. Our standard model runs at about 35-50 bags per minute. High-speed models are also available for larger production volumes.
Q3: Is it easy to change over between different sizes of drip bags and outer packages?
A3: Yes, it's designed for quick changeover. Product parameter recipes can be stored and recalled via the HMI touchscreen. Key mechanical adjustment parts feature modular quick-change designs to minimize downtime.
Q4: Are there specific features for coffee freshness preservation?
A4: Yes, the machine can be integrated with a high-precision nitrogen flushing system to displace oxygen inside the package before sealing, effectively extending shelf life and preserving flavor. All product contact parts are made of food-grade materials.
Q5: What types of packaging materials are supported?
A5: The inner bag typically supports coffee filter paper combined with laminated films for the drip bag structure. The outer bag supports common laminated materials like aluminum foil, kraft paper, PET/PE, etc. We can perform tests and adjustments based on your specific materials.
